Universal PSC/NMS-PSC

We do not, and will not support GPS, as it is unreliable and dangerous for on road vehicles or high speed motorsports.

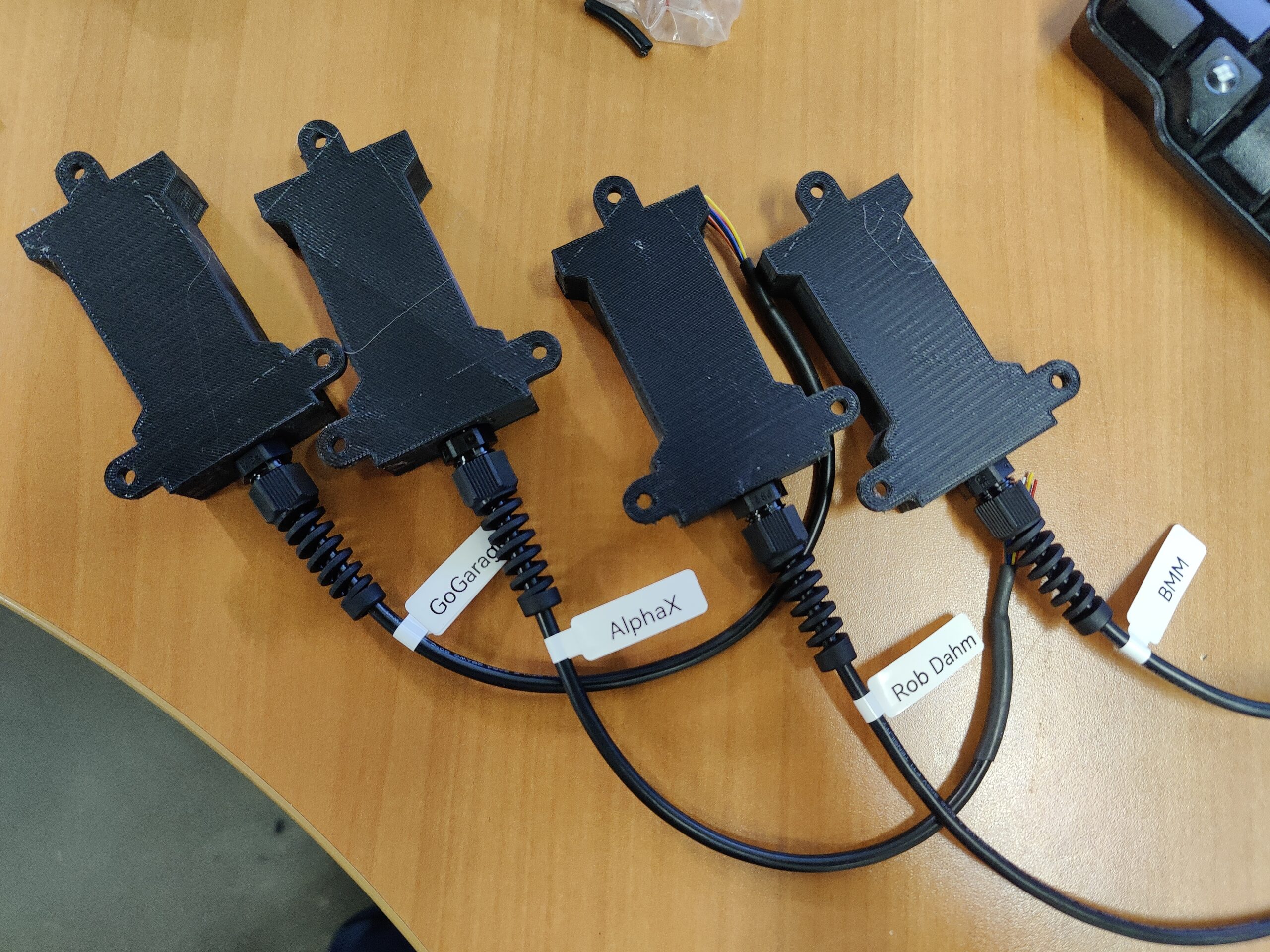

Universal electric power steering controller

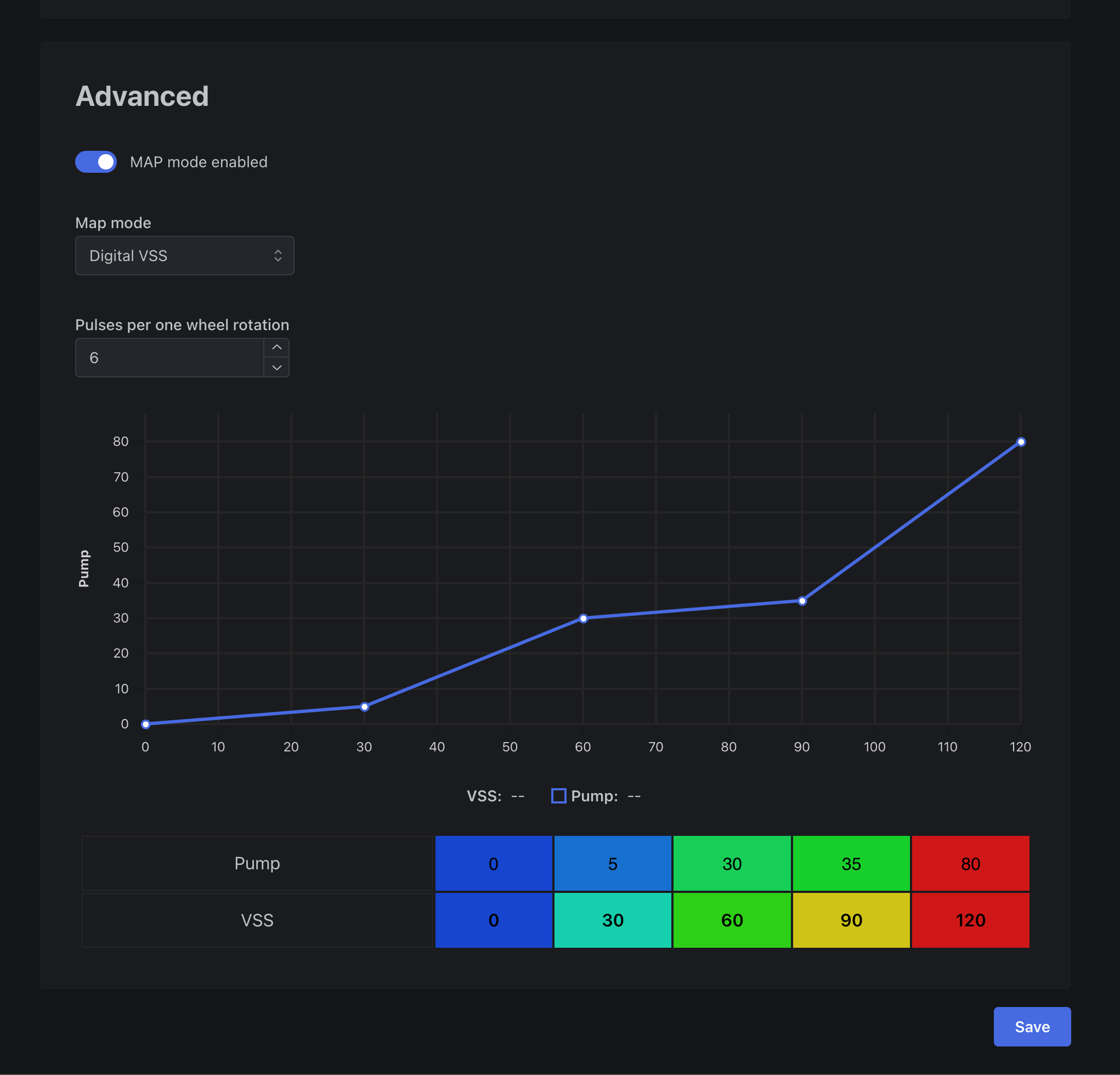

UI Demo: https://psc-demo.nmstec.ca/

Pinout: https://psc-demo.nmstec.ca/docs/

This controller was designed to control the many CANBUS operated power steering assist systems.

Can be operated by Frequency/PWM/Canbus.

Broadcasts all known information via Canbus.

Supports VSS types HALL & VR.

Pressure sensor input and Temperature sensor input.

2x 12v Push/Pull outputs. (Ability to run relay to turn pump on)

1x Analog Hall/Potentiometer for direct control or sensitivity bias.

12-24v with reverse polarity protection.

Supports the following vehicles:

EHPAS

1. Volvo C30, c50, v40
2. 2014-2015 Altima
3. 2015-2018 Altima
4. 2015-2018 Murano
5. 2004-2010 Mazda 3&5
6. 2010-2012 Mazda 3&5
7. Dodge Charger/Chrysler300 2012-2020
8. Jeep 2011-2013
9. Jeep 2014-2015
10. VAG 2002-2013?

Rack EPAS

1. Tesla
2. 2007 Cobalt
3. 2012 Camaro
4. 04-12 RX8
5. Dodge/Chrysler 2012-2020
6. 2010-2012 Focus – TESTING PHASE.

Column EPAS

1. 2000s Saturn Vue
2. 2012-2014 Kia Soul
3. 2007-2009 Nissan Versa
4. 2009-2012 Nissan Cube
5. 2018 Nissan rogue
6. 2006-2011 Toyota yaris
7. 2009-2013 Toyota Corolla
8. 2004-2009 Toyota Prius
9. 2012-2020 GT86/BRZ/FRS
10. 2010-2014 Toyota Prius
11. 2008-2012 Ford Escape (May encompass other Fords, but have not tested others yet)
12. Dodge/Chrysler 2012-2020
